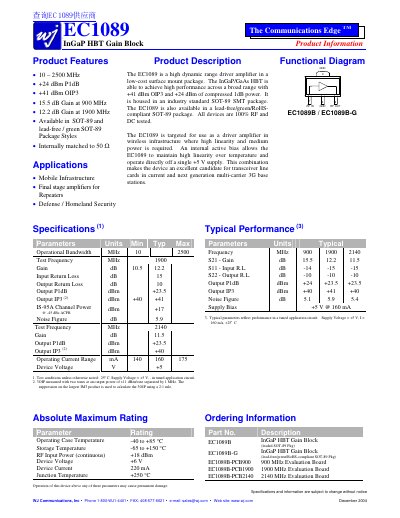

The EC1089 is a high dynamic range driver amplifier with +41 dBm OIP3 and +24 dBm of compressed 1dB power. It uses InGaP/GaAs HBT technology to achieve high performance across a broad range. The device is targeted for use as a driver amplifier in wireless infrastructure, with high linearity and medium power requirements.
The EC1089 is a high dynamic range driver amplifier utilizing InGaP/GaAs HBT technology housed in an industry standard SOT-89 surface mount package. It is designed for use as a driver amplifier in wireless infrastructure where high linearity and medium power are required, such as in mobile infrastructure cards and repeaters. The device features an internal active bias allowing it to operate directly off a single +5 V supply.
| Operational Bandwidth | 10 to 2500 MHz |
|---|---|
| Gain at 900 MHz | 15.5 dB |
| Gain at 2140 MHz | 11.5 dB |
| Output P1dB at 900 MHz | +24 dBm |
| Noise Figure at 900 MHz | 5.1 dB |
| Supply Voltage | +5 V |
| Operating Current | 160 mA |
| Operating Case Temperature | -40 to +85 °C |
The device operates from 10 to 2500 MHz.
The device operates directly off a single +5 V supply.
The maximum operating case temperature is +85 °C.
