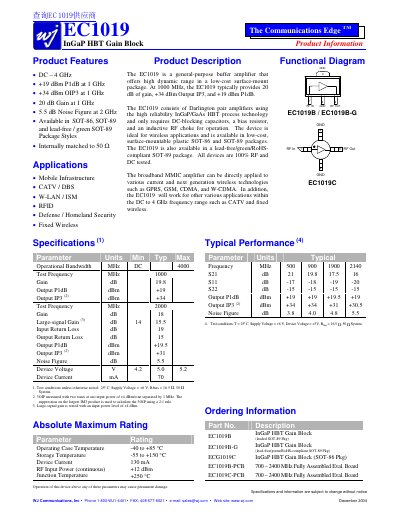

The document provides specifications and information about WJ Communications' EC1019 InGaP HBT Gain Block product. The product features a frequency range of DC - 4 GHz, +19 dBm P1dB at 1 GHz, +34 dBm OIP3 at 1 GHz, 20 dB gain at 1 GHz, and 5.5 dB noise figure at 2 GHz. It is available in SOT-86, SOT-89, and lead-free/green SOT-89 package styles. The EC1019 is suitable for applications such as mobile infrastructure, CATV/DBS, W-LAN/ISM, RFID, defense/homeland security, and fixed wireless.
The EC1019 is a general-purpose buffer amplifier utilizing high-reliability InGaP/GaAs HBT process technology. It offers high dynamic range in a low-cost surface-mount package and is ideal for wireless applications such as mobile infrastructure, CATV/DBS, and defense systems. The device is available in SOT-86 and SOT-89 package styles, with options for lead-free/green compliance.
| Operational Bandwidth | DC to 4 GHz |
|---|---|
| Gain at 1 GHz | 20 dB |
| Output P1dB at 1 GHz | +19 dBm |
| Output IP3 at 1 GHz | +34 dBm |
| Noise Figure at 2 GHz | 5.5 dB |
| Supply Voltage | +6 V |
| Device Current | 70 mA |
| Package Styles | SOT-86, SOT-89 |
The device operates from DC to 4 GHz.
The recommended supply voltage is +6 V.
