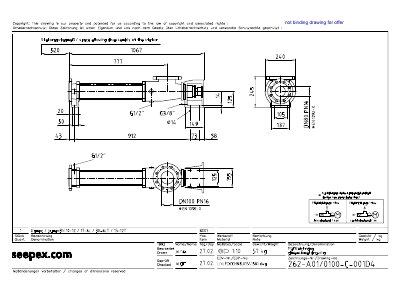

This document provides a dimensional drawing for the stator assembly of Seepex BN series pumps. It specifies design details such as flange standards (EN 1092-X), connection sizes (G1/2", G3/8"), and flow direction options (left-hand or clockwise). The drawing is noted as non-binding for offers and includes a weight estimate of 57 kg. This manual is written in German.
The starting torque is 150 Nm.
The values are based upon water at 20°C.
