The G5 series DC motor is a constant-power DC motor. It has two power options: 24.5W and 25W. The rated speed is 2900rpm and 3400rpm. The rated output torque is 8Nm and 7Nm respectively. The rated output current is 1.7A and 1.5A respectively. The motor uses mechanical commutation, and the magnetic circuit uses two-pole permanent magnet to achieve high efficiency. The motor uses B-class insulation and IP40 protection grade.

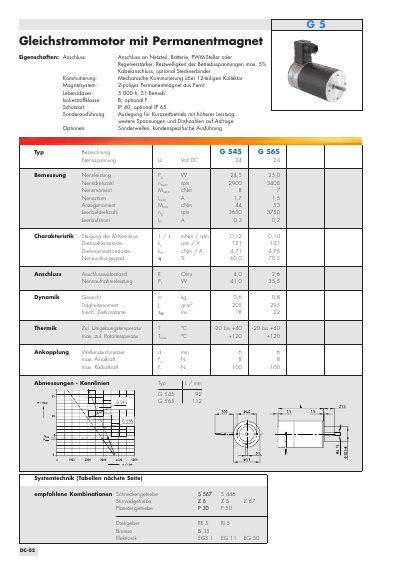

This document provides technical specifications for the GEFEG-NECKAR G 545 and G 565 series of permanent magnet DC motors. Key features include a ferrite magnet system, a mechanical commutation with a 12-segment collector, and an operating life of 5,000 hours under S1 duty. The motors are designed for a nominal voltage of 24V DC and offer various protection classes and connection options. This manual is written in German.
| Nominal Voltage | 24 V DC |
|---|---|
| Rated Power | 24.5 W / 25.0 W |
| Rated Speed | 2900 rpm / 3400 rpm |
| Rated Torque | 8 cm / 11 cm |
| Rated Current | 1.7 A / 1.5 A |
| Operating Life | 5.000 h |
| Protection Class | IP 40, optional IP 65 |
Both the G 545 and G 565 models have a rated voltage of 24 V DC.
The maximum axial force is 8 N.
