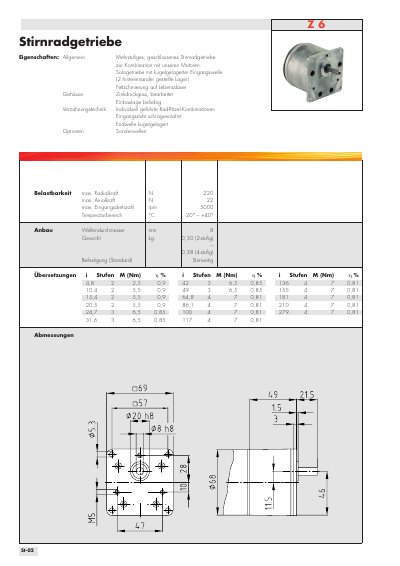

This document describes the features and characteristics of the St-02 Z 6 spur gear unit, including multi-stage closed design, ball-bearing input shaft, lifetime lubrication, zinc die-cast housing, customizable gear combinations, optional special shafts, and its maximum radial and axial load capacity, maximum input speed, and temperature range.
The GEFEG-NECKAR Z 6 is a worm gearbox designed for combination with the manufacturer's motors. It features a closed housing made of zinc die-casting, which allows for individual gear combinations. The unit includes a spherical roller bearing input shaft and a spherical roller output shaft, with options for special shafts available. This manual is written in German.
| Housing Material | Zinkdruckguss |
|---|---|
| Input Shaft Bearing | Kugelgelager |
| Output Shaft Bearing | Kugelgelager |
| Max. Radial Load | 220 N |
| Max. Axial Load | 22 N |
| Max. Input Speed | 5000 rpm |
| Operating Temperature Range | -20 to +40 C |
| Input Shaft Diameter | 8 mm |
| Weight (2-stage) | 0.30 kg |
| Weight (1-stage) | 0.38 kg |
The maximum radial load is 220 N.
It operates between -20 and +40 degrees Celsius.
