Jenaer 23S21-0560-8A5J7-52_200 Motor Connection Datasheet

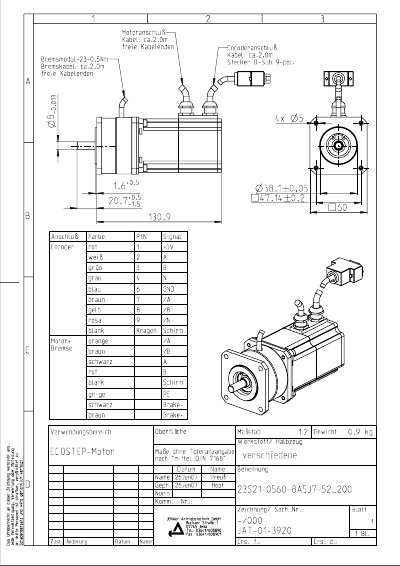

Jenaer 23S21-0560-8A5J7-52_200 Motor Connection Datasheet - cover page
Brand
Jenaer
Category
Motor
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
68 KB
Published
10 July, 2012
Updated
23 July, 2012
MD5 checksum
86044FC0AC21CF58D00CAC86F44CF800
PDF
Jenaer 23S21-0560-8A5J7-52_200 Motor Connection Datasheet PDF

About this manual

This document is a technical datasheet for the Jenaer 23S21-0560-8A5J7-52_200 motor brake module. It provides essential connection information, including a wiring diagram with color-coded pin assignments for the encoder, motor, and brake connections. This manual is written in German.

What's inside

  • Motoranschlug
  • Kabel
  • Encoder
  • Bremsmodul
  • Anschlug
  • PIN Signal
  • Verwendungsbereich
  • Mafbsfab
  • Gewicht
  • Zeichnung

Specifications

Cable LengthCa. 2.0m
Model Number23S21-0560-8A5J7-52_200

Frequently asked questions

What is the rated torque of the brake module?

The brake module is rated for 0.5 Nm.

How long is the free cable length for the motor connection?

The free cable length is approximately 2.0 meters.
