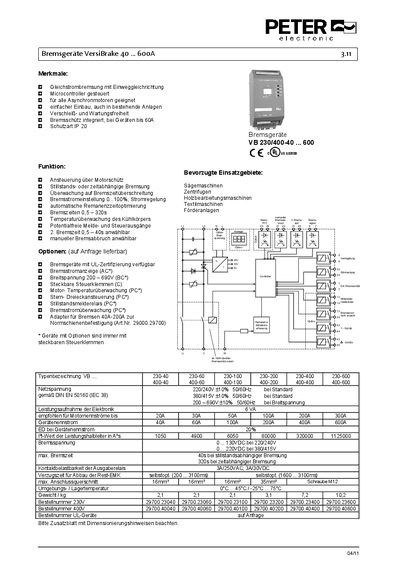

PETER electronic VB 230/400-40...600 technology data

The VB series DC brake has the following features: DC brake with single-way rectifier, micro-controller control, suitable for all asynchronous motors, easy to install, can be used in existing devices, no maintenance and replacement, built-in brake protection, IP20 protection grade

Brand: PETER
Category: Other Electronics
Document type: Product Leaflet
Language: German
Pages: 2
File format: PDF
File size: 355 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: F89FDA03B6214E89AA964D14FCDE4E17
PDF: PETER electronic VB 230/400-40...600 technology data PDF

About this manual

This document provides technical information for the Peter electronic VersiBrake series of DC braking devices (Bremsgerate). The devices are designed for asynchronous motors and feature microcontroller-controlled braking, integrated protection up to 60A, and a maintenance-free design. They support voltage ranges from 230V to 690V. This manual is written in German.

What's inside

Merkmale
Funktion
Bevorzugte Einsatzgebiete
Optionen
Typenbezeichnung
Netzspannung
Leistungsaufnahme
Geratenennstrom
Abmessungen
Anschlusspläne

Specifications

Rated Current Range	40A ... 600A
Control Method	Microcontroller controlled
Protection Rating (Standard)	IP 20
Input Voltage Range	230-690V AC
Power Consumption	6VA

Frequently asked questions

Is the brake device maintenance-free?

Yes, the devices are described as wear- and maintenance-free.

What is the maximum braking time available for this device?

The device supports a maximum braking time of 320 seconds when using time-dependent braking.

What is the recommended motor rated current for the VB 230/40 model?

The VB 230/40 model is recommended for motors with a rated current of up to 20 amperes.

What is the maximum cross-section allowed for the connection cables?

The maximum allowable connection cross-section is 35 square millimeters.
