The document describes the construction and functional features of Wegeventile, including different switching positions, the use of electromagnets and return springs, power supply methods, and manual operation. The product is characterized by high pressure and large flow rate.

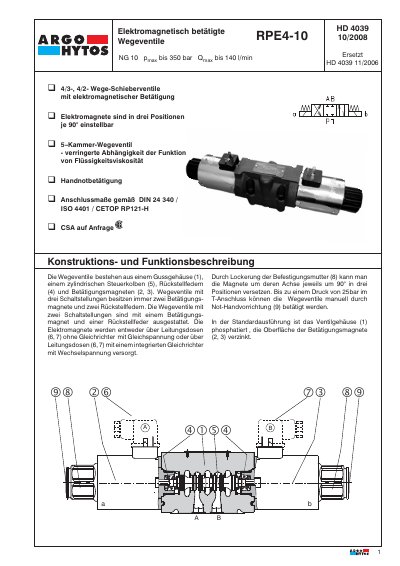

This document provides technical data for the Argo-Hytos RPE4-10, an electromagnetically actuated 4/3- or 4/2-way slide valve. It details the valve's construction, including the cast housing, piston, and solenoids, as well as its operational characteristics such as maximum flow rates and pressure ratings. The manual specifies that the valve is available with one or two solenoids and includes options for manual emergency operation. This manual is written in German.
| Max. operating pressure (T port) | 210 bar |
|---|---|
| Max. flow rate | 140 l/min |
| Weight (with 2 magnets) | 5.4 kg |
The valve is available in nominal sizes from 10 to 350.
The maximum operating pressure for the T port is 210 bar.
