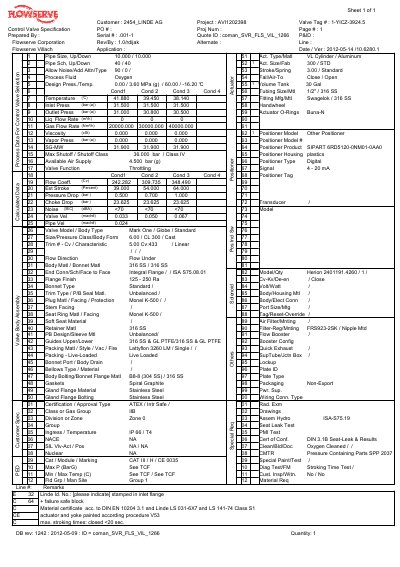

This document is a technical specification sheet for a Flowserve Mark One control valve, identified by tag number 1-YICZ-3924.5. The valve is designed for a 6-inch pipe size with a Class 300 pressure rating and is intended for use with oxygen as the process fluid. It features a globe body style with an unbalanced trim and a linear flow characteristic.
| Valve Tag | 1-YICZ-3924.5 |
|---|---|
| Pipe Size | 10.000 inch |
| Pressure Class | CL 300 |
| Body Type | Globe / Standard |
| Process Fluid | Oxygen |
| Actuator Type | VL Cylinder / Aluminum |
| Positioner Model | SIPART 6RD5120-ONM01-0AAO |
| Flow Coefficient (Cv) | 433 |
| Trim Characteristic | Linear |
| Certification | ATEX/ Intr Safe |
The process fluid is Oxygen.
The design pressure is 3.60 MPa (g).
The maximum shutoff pressure is 36.000 bar.
The maximum stroking time when closed is less than 20 seconds.
