Detailed information about the GNM 3150 - G 2.6 DC motor model, including rated voltage, rated current, maximum braking torque, operating mode, insulation class, protection class, connection type, rotation direction, bearing type, etc.

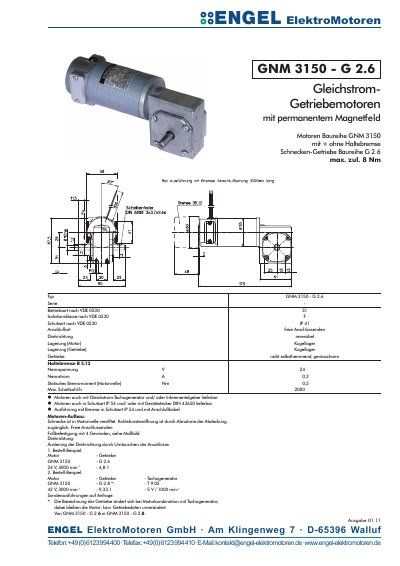

This document provides technical data for the ENGEL GNM 3150-G2.6 series of direct current (DC) geared motors equipped with a permanent magnetic field. The product line includes versions with or without a holding brake and utilizes a worm gear transmission system rated for a maximum torque of 8 Nm.
The datasheet details operational parameters such as nominal voltage, speed, and dimensions, alongside specific construction features like ball bearings and reversible rotation direction. It also presents detailed tables regarding boundary loads based on various reduction ratios, providing limits for current, torque, power, and temperature to ensure safe operation. This manual is written in German.
| Max. zulässiges Drehmoment | 8 Nm |
|---|---|
| Nennspannung | 24 V DC |
| Maximale Drehzahl | 2000 min⁻¹ |
| Lagerung (Motor) | Kugellager |
| Schutzart (Standard) | IP 41 |
The motor uses a worm gear transmission from series G 2.6.
No, the gearbox is not self-locking and requires a holding brake for that function.
