This document is the product manual for the L-force Servo Motors MQA series, which mainly introduces the features and characteristics of the series motors, including specifications, installation dimensions, wiring methods, etc.

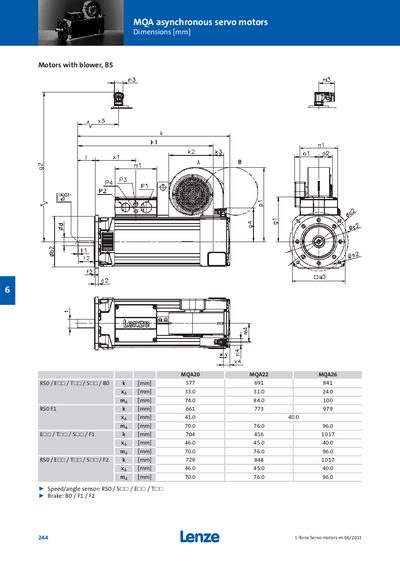

This document presents technical dimensions for the Lenze L-force series of asynchronous servo motors. It specifically covers the MQA20, MQA22, and MQA26 models equipped with blowers in a B5 mounting configuration.
The data includes detailed measurements for various motor configurations based on speed/angle sensor types (RSO, SOO, EOO, TOO) and brake options (BO, F1, F2). Dimensions are provided in millimeters for key parameters such as overall length, flange diameter, and shaft specifications.
The dimensions vary by model, with lengths ranging from 577 mm to 841 mm and diameters from 24.0 mm to 46.0 mm.
The dimensions vary by model, with lengths ranging from 704 mm to 1017 mm and diameters from 40.0 mm to 46.0 mm.
The dimensions vary by model, with lengths ranging from 729 mm to 1017 mm and diameters from 40.0 mm to 46.0 mm.
