This document describes the quick-action valve SVK 12-6, which is an automatic controlled cylinder valve for CO2 high pressure systems. The valve can be automatically released using electrical and/or pneumatic methods. The document also provides information on the operation and maintenance of the valve.

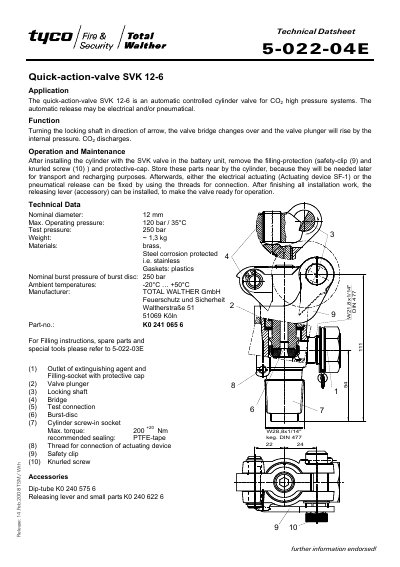

The document describes the Total Walther SVK 12-6, an automatic controlled cylinder valve designed for CO2 high pressure systems. The valve features both electrical and pneumatic release capabilities to discharge CO2 automatically when triggered.
Technical data provided includes a nominal diameter of 12mm, a maximum operating pressure of 120 bar at 35°C, and a test pressure of 250 bar. The unit is constructed from brass with corrosion-protected steel components and plastic gaskets.
| Nominal diameter | 12mm Ne |
|---|---|
| Max. Operating pressure | 120 bar / 35°C |
| Test pressure | 250 bar |
| Weight | ~1,3kg |
| Materials | brass, Steel corrosion protected 4 Y i.e. stainless / H Gaskets: plastics ; J |
| Ambient temperatures | -20°C ... +50°C |
The nominal diameter is 12mm Ne.
The automatic release may be electrical and/or pneumatical.
