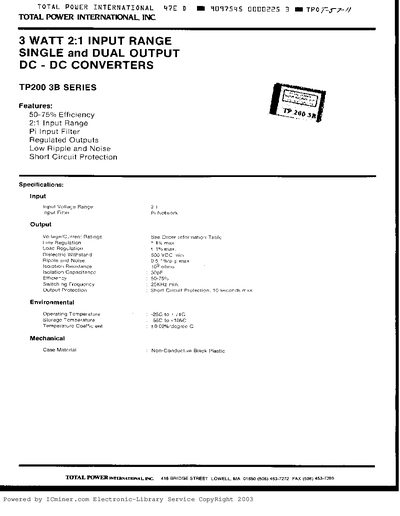

The TP200 3B Series from Total Power provides single‑ and dual‑output DC‑DC conversion with a 2:1 input voltage range and Pi‑network input filtering. Features include 50‑75% efficiency, low ripple and noise, and built‑in short‑circuit protection.
Technical specifications list input voltage ranges from 4.5 V to 72 V, line and load regulation within 1%, dielectric withstand of 500 V, and operating temperatures from –25 °C to +71 °C. The unit is housed in a non‑conductive black plastic case and includes detailed pin‑out diagrams and an order‑information table.
| Efficiency | 50‑75% |
|---|---|
| Input Voltage Range | 4.5‑6.0 V, 9‑18 V, 18‑36 V, 36‑72 V |
| Switching Frequency | ≥ 25 kHz |
| Ripple and Noise | 0.5‑1 % p‑p max |
| Isolation Resistance | 10⁹ Ω |
| Dielectric Withstand | ≥ 500 V |
| Operating Temperature | -25 °C to +71 °C |
| Case Material | Non‑conductive black plastic |
The converter operates with an efficiency between 50 % and 75 %.
It supports input ranges of 4.5‑6.0 V, 9‑18 V, 18‑36 V, and 36‑72 V.
Yes, it includes short‑circuit protection that limits the fault condition to a maximum of 16 seconds.
The device can operate from –25 °C up to +71 °C.
