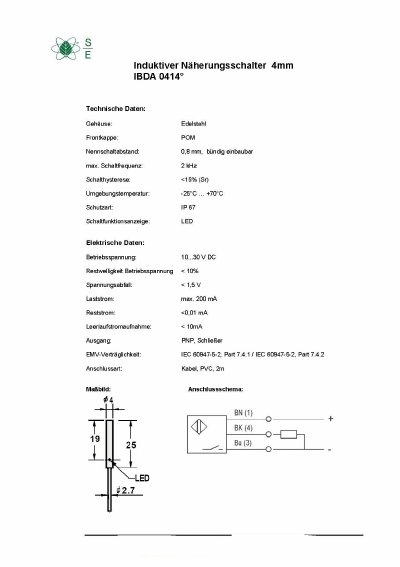

This document provides technical specifications for the Schoenbuch IBDA 0414° inductive proximity switch. The device features a stainless steel housing with a POM front cap and is designed for a nominal switching distance of 0.8 mm.
Electrical parameters include an operating voltage range of 10 to 30 V DC, a maximum load current of 200 mA, and a PNP closed output. The switch operates within an ambient temperature range of -26°C to +70°C and has an IP 67 protection rating. This manual is written in German.
| Housing Material | Stainless Steel (Edelstahl) |
|---|---|
| Front Cap Material | POM |
| Nominal Switching Distance | 0.8 mm |
| Maximum Switching Frequency | 2 kHz |
| Switching Hysteresis | <15% |
| Ambient Temperature Range | -26°C ... +70°C |
| Protection Rating | IP 67 |
| Operating Voltage | 10...30 V DC |
| Maximum Load Current | 200 mA |
| Output Type | PNP, Closed (SchlieBer) |
| Cable Length | 2m PVC |
The maximum switching frequency is 2 kHz.
The device operates on a DC voltage of 10 to 30 V.
The maximum load current is 200 mA.
