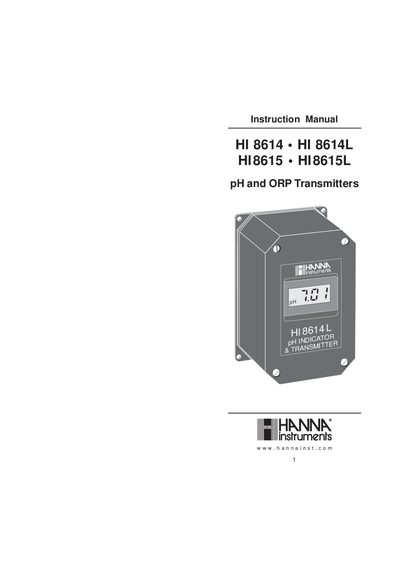

HANNA HI 8614 HI 8614L HI8615 HI8615L pH ORP Transmitters Instruction Manual

This manual mainly introduces the characteristics and usage of HI 8614 / HI 8614L (pH) and HI 8615 / HI 8615L (ORP) products.

Brand: Hanna Instruments
Document type: User Manual
Language: English
Pages: 19
File format: PDF
File size: 575 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: CD9DAEE800E4DF2C9EE7FA4BFB814503
PDF: HANNA HI 8614 HI 8614L HI8615 HI8615L pH ORP Transmitters Instruction Manual PDF

About this manual

This document provides instructions for the setup, calibration, and maintenance of Hanna Instruments HI 8614/8614L (pH) and HI 8615/8615L (ORP) transmitters. These are 2-wire water-resistant devices designed for long-distance industrial applications, transmitting signals in a 4 to 20 mA current loop.

What's inside

General Description
Specifications of HI8614 & HI 8614L
Terminal Board Connections
pH Calibration with Automatic Temperature Compensation
pH Calibration with Manual Temperature Compensation
ORP Calibration
Electrode Conditioning and Maintenance

Specifications

Range (Current)	4 to 20 mA
Resolution (pH)	0.01 pH
Accuracy (@20°C)	+0.02 pH
Protection Class	IP 65
Environment Temperature	0 to 50°C (32 to 122°F)
Power Supply (HI8614)	18 to 30 Vdc
Power Supply (HI8615)	18 to 30 Vdc

Frequently asked questions

What is the maximum distance between the power supply and amplifier?

The maximum distance between the power supply and the amplifier is 300 m (1000').

Can the transmitters be used with Hanna indicators?

Yes, HI8614/8614L can connect to HI8510T, HI8710T, or HI8711T, and HI8615/8615L can connect to HI8512T or HI8720T.

What buffer solutions are recommended for calibration?

Use pH 7.01 and pH 4.01 for acid samples, or pH 7.01 and pH 10.01 for alkaline measurements.
