Introduces the product features and usage methods of HI 7635 - HI 7636 4-PIN IN-LINE CONDUCTIVITY PROBES

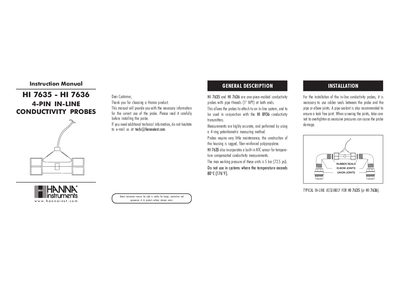

This manual provides instructions for the HI 7635 and HI 7636 one-piece molded conductivity probes, which feature 1" NPT pipe threads for in-line system attachment. The probes utilize a 4-ting potentiometric measuring method and can be used with HI 8936 conductivity transmitters. The HI 7635 model includes a built-in NTC sensor for temperature-compensated measurements.
| Pipe Thread | 1" NPT |
|---|---|
| Measuring Method | 4-ting potentiometric |
| Housing Material | fiber-reinforced polypropylene |
| Max Working Pressure | 5 bar (72.5 psi) |
| Max Temperature | 80°C (176°F) |
| Cable Length | 4 m |
| Warranty Period | six months |
The maximum working pressure is 5 bar (72.5 psi).
Immerse the probe in 0.1N Hydrochloric acid for about 30 minutes.
All Hanna Instruments probes are warranted for a period of six months.
