This document provides instructions for using Hanna products and describes their features. It provides the correct method for using the test kit and describes the features of the Iron Low Range Test Kit.

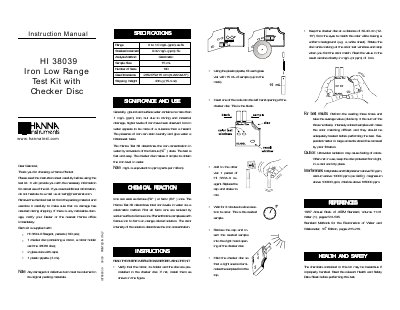

This document is the instruction manual for the Hanna Instruments HI 38039 Iron Low Range Test Kit. The kit is designed to determine total iron levels in water using a colorimetric method with a checker disc for easy reading. It includes reagents, glass vials, a pipette, and a checker disc with a mirror.
| Range | 0 to 1.0 mg/L (ppm) as Fe |
|---|---|
| Smallest Increment | 0.02 mg/L (ppm) Fe |
| Analysis Method | Colorimetric |
| Sample Size | 15 mL |
| Number of Tests | 100 |
| Case Dimensions | 236x175x1165 mm (9.2x6.9x4.5") |
| Shipping Weight | 436 g (15.4 oz) |
The kit uses a colorimetric method where phenanthroline complexes with ferrous ions to form an orange colored solution.
The disc should be kept protected from light, in a cool and dry place to prevent fading of colors caused by ultraviolet radiation.
