The document describes the features of BCW 67 and BCW 68 general purpose PNP surface mount transistors. These transistors have a power dissipation of 250 mW and are suitable for mounting on circuit boards. They have low power consumption, high current, and high temperature characteristics, making them suitable for various applications.

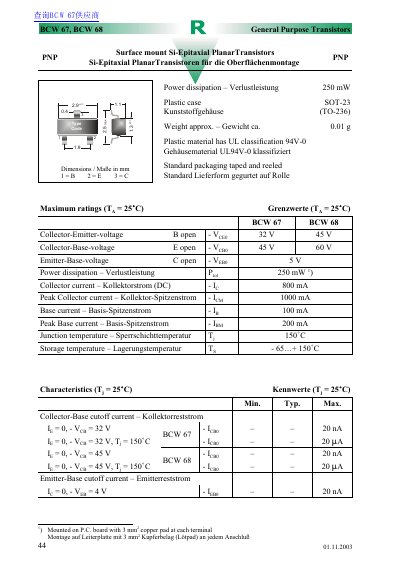

This document is a datasheet for the BCW 67 and BCW 68 series of general-purpose PNP Si-Epitaxial Planar transistors. These devices are designed for surface mount applications and are housed in a plastic SOT-23 case. This manual is written in German.
| Power dissipation | 250 mW |
|---|---|
| Collector-Emitter voltage | 32 V (BCW 67), 45 V (BCW 68) |
| Collector current (DC) | 800 mA |
| Junction temperature | 150°C |
The marking for BCW 67C is DC.
The maximum power dissipation is rated at 250 mW.
The maximum junction temperature is 150°C.
A 3 mm² copper pad is required at each terminal.
