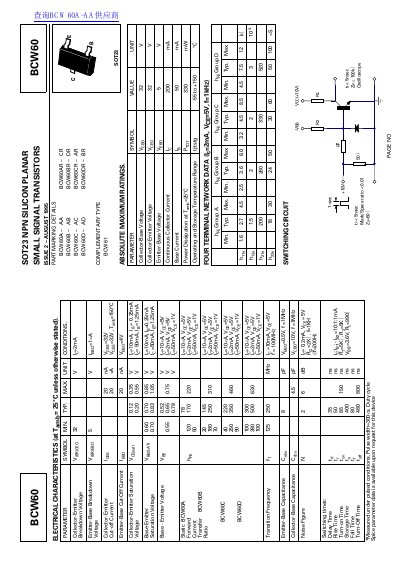

The document is a datasheet for the WITCHING BCW60A, an NPN silicon planar small signal transistor packaged in SOT23. It details part marking variations for the BCW60 series and lists the complementary type as BCW61. The text includes absolute maximum ratings for voltage and current, as well as operating temperature ranges from -55 to +150 °C.
| Collector-Base Voltage | 32 V |
|---|---|
| Collector-Emitter Voltage | 32 V |
| Emitter-Base Voltage | 5 V |
| Continuous Collector Current | 200 mA |
| Base Current | 50 mA |
| Power Dissipation | 330 mW |
| Operating Temperature Range | -55 to +150 °C |
| Transition Frequency | 125 MHz |
The complementary type for the BCW60 series is the BCW61.
The maximum storage temperature is +150 °C.
