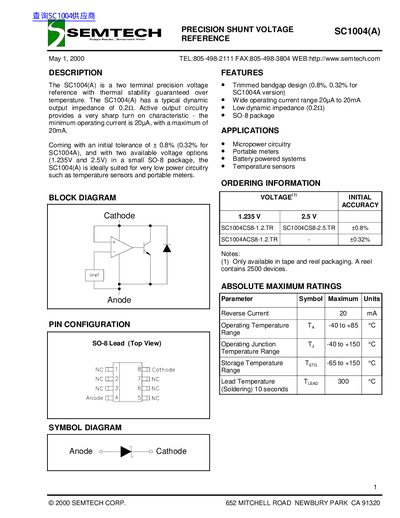

SC1004(A) is a precision voltage reference with ±0.8%(0.32% for SC1004A version) initial accuracy, typical dynamic output impedance 0.2Ω, minimum operating current 20µA and maximum operating current 20mA. It is ideal for very low power circuitry such as battery powered systems, micropower circuitry, portable meters and temperature sensors.
The SC1004(A) is a two-terminal precision voltage reference featuring a trimmed bandgap design with thermal stability guaranteed over temperature. It offers an initial tolerance of ±0.8% (±0.32% for the SC1004A version) and comes in 1.235V or 2.5V options within a small SO-8 package.
| Initial Accuracy (SC1004) | ±0.8% |
|---|---|
| Initial Accuracy (SC1004A) | ±0.32% |
| Operating Current Range | 20µA to 20mA |
| Reverse Dynamic Impedance (Typical) | 0.2 Ω |
| Operating Temperature Range | -40 to +85 °C |
The minimum operating current is 20µA.
The device is available in 1.235V and 2.5V options.
