The Agilent Cary 60 is a UV-Vis spectrophotometer produced by Agilent. It uses a classic Cary optical design with a Czerny-Turner monochromator. The spectral range is 190-1100nm, the resolution is less than 1.5nm, and a single xenon light source is used with a lifetime of up to 10 years. It has two silicon detectors, multiple layers of quartz optical elements, a scanning speed of up to 24000nm/min, a maximum speed of 80 points/second for time events, and a grid shift in non-measurement. It is immune to external scattered light and is fully controlled by a PC via Windows and a USB port. It has GLP and CFR 21 Part 11 software for complete instrument validation in accordance with all pharmacopoeias.

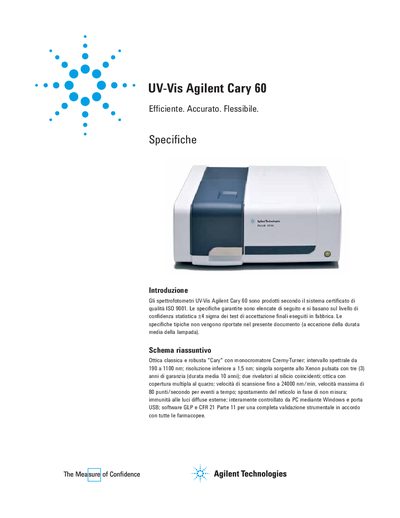

This document provides the guaranteed specifications for the Agilent Cary 60 UV-Vis spectrophotometer. The instrument features a robust classic 'Cary' optical design with a Czerny-Turner monochromator and a pulsed Xenon source. It is designed for high accuracy and flexibility, supported by PC control via Windows and USB. This manual is written in Italian.
| Spectral Range | 190-1100 nm |
|---|---|
| Resolution | < 1.5 nm |
| Monochromator | Czerny-Turner |
| Source | Pulsed Xenon |
| Detector | Two coincident silicon detectors |
| Scan Speed | Up to 24000 nm/min |
| Wavelength Accuracy | +/- 0.5 nm |
| Photometric Accuracy | NIST 930D at 1 Abs + 0.005 Abs |
| Dimensions (without packaging) | 477 x 567 x 196 mm |
| Weight (without packaging) | 18 kg |
| Power Supply | 100-240 V AC, 47-63 Hz |
| Warranty (Instrument) | 12 months |
The spectral range is from 190 to 1100 nm.
The maximum scan speed is up to 24000 nm/min.
The accuracy is +0.005 Abs when using the NIST 930D filter.
The instrument comes with a 12-month warranty.
