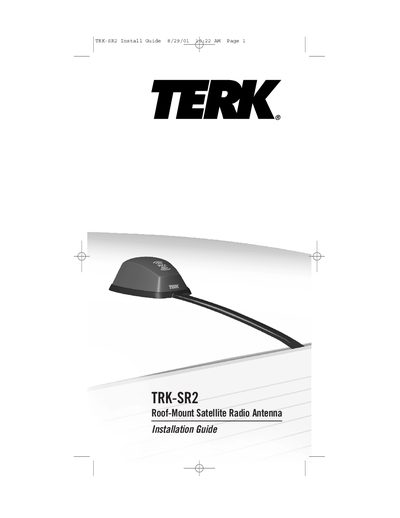

TRK-SR2 is a roof-mount satellite radio antenna that is suitable for four-door sedans, SUVs, two-door coupes/hatchbacks, convertibles, vans/minivans, and pickup trucks.
The Terk TRK-SR2 is a high-performance roof-mounted antenna designed specifically for XM Satellite Radio reception. It features dual-mode functionality to receive signals from both satellites and terrestrial repeaters, ensuring continuous audio quality. The unit includes attached micro cables that wrap around the rear window for an invisible wiring solution.
| Frequency | 2332.5 to 2345.0 MHz |
|---|---|
| Bandwidth | 12.5 MHz |
| Input Impedance | 50 ohms |
| Current Draw | 110 mA typical per antenna LNA |
| Input Voltage | 4.5 Vdc typical |
| Cables Length | 11 feet coaxial |
| Connectors Type | FAKRA-type SMB (color coded) |
| Mounting Material | Adhesive pads (3M 5356 acrylic foam) |
| Weight | 6 oz (without cables) |
Recommended supplies include a tool to help cable routing, lubricant like light machine oil, cable tie wraps, adhesive mounting bases, and a tape measure with a level.
The selected site must have a conductive surface area of at least 2-1/4 square feet and be located 6 inches from rear window molding.
