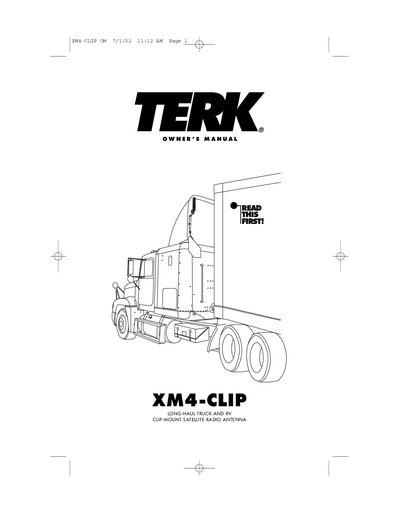

TERK XM4-CLIP Clip-Mount Satellite Radio Antenna Owner's Manual

XM4-CLIP is the TERK long-haul truck and RV clip-mounted satellite radio antenna owner's manual

Brand: TERK
Category: Other device
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 274 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: 92C1DFA6921002C618C0858799DC7134
PDF: TERK XM4-CLIP Clip-Mount Satellite Radio Antenna Owner's Manual PDF

About this manual

This manual provides instructions for installing the TERK XM4-CLIP Clip-Mount Satellite Radio Antenna on long-haul trucks and recreational vehicles (RVs). The antenna features a ground-plane independent design and is pre-assembled with a right-angle bracket and 30 feet of coaxial cable. It is designed to withstand high-vibration road environments and ensure continuous reception of XM Satellite Radio signals.

What's inside

About Installation
Applications
Parts for TERK XM4-CLIP Clip-Mount Antenna
Recommended Tools And Supplies
Installation Precautions And Tips
Installing The TERK XM4-CLIP Clip-Mount Antenna
Use And Care
Troubleshooting
Specifications
Limited Warranty

Specifications

Operating Temperature	-40 °C to +105 °C
Storage Temperature	-45 °C to +120 °C
Warranty Period	1 year

Frequently asked questions

What vehicles is the TERK XM4-CLIP designed for?

The antenna is designed specifically for XM Satellite Radio reception on long-haul trucks and RVs.

What is the minimum clearance required from metallic obstructions?

There must be at least a 20-degree clearance from any metallic obstruction on all sides.
