This manual introduces the features and characteristics of the liquid crystal display, and details the use, installation, operation and maintenance of the product.

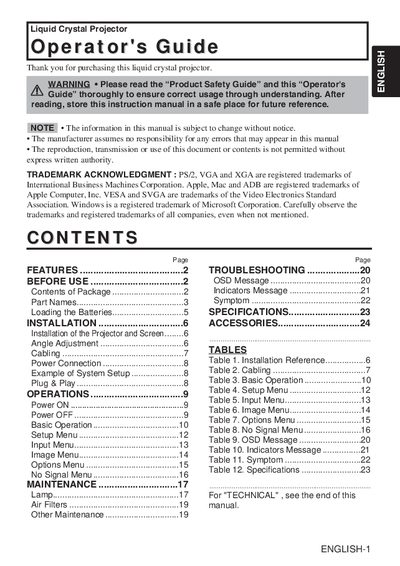

This document is the Operator's Guide for a SUK liquid crystal projector. It details the features of the device, including its UHB lamp and high-efficiency optical system, as well as functions like partial magnification and distortion correction. The guide covers safety warnings, package contents, and part names.
| Lamp Type | UHB lamp |
|---|---|
| Projection Angle Adjustment | 0° to 9° |
| Laser Wavelength | 500nm |
The package includes the projector, power cords, various cables (S-Video, VGA, etc.), remote control transmitter, batteries, and safety/warranty guides.
Lift the front of the projector, press the foot adjuster button to adjust the angle between 0° and 9°, then release the button to lock it.
Do not look directly into the laser beam or point it at people, as it can cause vision problems. The output is 1mW at 500nm.
