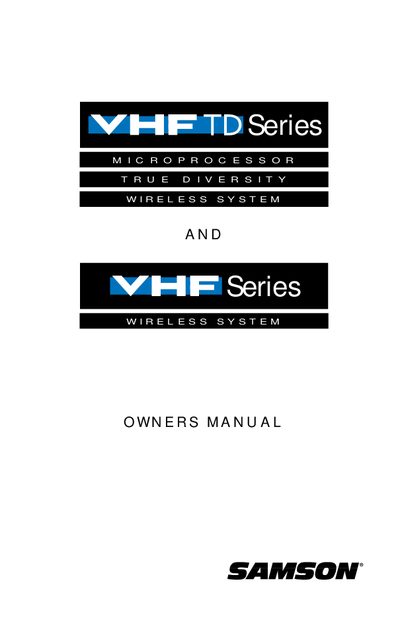

Samson VHFTD/VHF Series Wireless System Owners Manual

This document is the owner's manual for the T R U E D I V E R S I T Y M I C R O P R O C E S S O R W I R E L E S S S Y S T E M ®. It describes the features and characteristics of this wireless system series.

Brand: SANSON
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 356 KB
Published: 05 July, 2012
Updated: 29 September, 2023
MD5 checksum: 67DC2F6AB5A3F7833A67110C233814FC
PDF: Samson VHFTD/VHF Series Wireless System Owners Manual PDF

About this manual

This document serves as an owners manual for the Samson VHFTD Series and VHF Series Wireless Systems. It provides comprehensive instructions on setting up and using these wireless audio transmission devices, which operate in the 173.8 - 213.2 MHz frequency range. The guide details the components included in the system, such as VR3TD or VR3 receivers paired with VT3L, VT3, or VH3 transmitters.

What's inside

Introduction
Guided Tour - VR3TD Receiver Front Panel
Guided Tour - VR3TD Receiver Rear Panel
Guided Tour - VR3 Receiver Front Panel
Guided Tour - VR3 Receiver Rear Panel
Guided Tour - VT3L / VT3 Transmitter
Guided Tour - VH3 Transmitter
Setting Up and Using Your VHF TD Series / VHF Series System
Specifications

Specifications

Frequency Range	173.8 - 213.2 MHz
Power Input	DC 12V, 1.9W(160mA)

Frequently asked questions

What is the frequency range of this wireless system?

The system operates in the 173.8 - 213.2 MHz frequency range.

What power adapter is required for the VR3TD receiver?

The supplied 12 volt 250 mA power adapter must be used.
