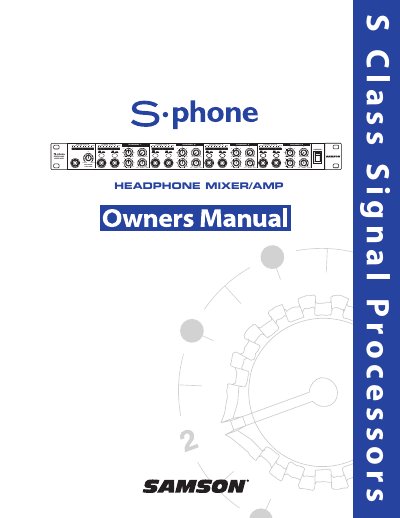

This is a PDF file that introduces headphone mixer/amplifier
The Samson Sephone is a compact, high-quality device that allows users to monitor audio signals over up to twelve separate headphones. It features four channels with individual dual-band equalizers, level controls, and mute switches, along with master stereo inputs and balance control.
This guide covers the setup process, including connecting main inputs and adjusting initial volume levels safely. It details the front and rear panel functions, such as the ST/2CH switch for mode selection and auxiliary inputs for mixing. The manual also includes wiring guides, impedance ratings for various headphones, and troubleshooting information.
| Channels | Four channel headphone mixer amplifier |
|---|---|
| Headphone Outputs | Three headphone outputs; two rear, plus one front panel output per channel |
| Master Inputs | Two master stereo inputs with balance control |
| Equalizer | Dual band equalizer on each channel |
| Metering | 5 segment LED meter on each channel plus master |
The device allows you to monitor any stereo or monophonic source signal over as many as twelve separate headphones.
You should turn the Master Volume knob and all four headphone Channel Output knobs to their minimum (fully counterclockwise) setting before powering on.
You can link any number of units using special output jacks on the rear panel, which tie outputs to the main input for linking.
