Agilent 35900E Dual-Channel Interface with Modular Input/Output Datasheet

Agilent 35900E Dual-Channel Interface with Modular Input/output Specifications

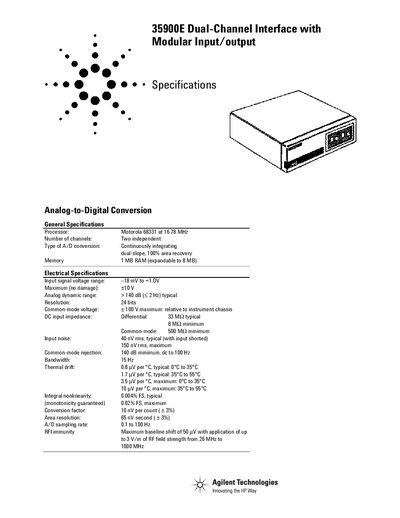

Agilent 35900E Dual-Channel Interface with Modular Input/Output Datasheet - cover page
Brand
35900E
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
53 KB
Published
05 July, 2012
Updated
30 September, 2023
Model
35900E
MD5 checksum
D01F96D736D5B1C7FDCC3DE27E2DDF88
PDF
Agilent 35900E Dual-Channel Interface with Modular Input/Output Datasheet PDF

About this manual

This document provides technical specifications for the Agilent 35900E Dual-Channel Interface with Modular Input/Output. It details the instrument's processor, memory capacity, and high-resolution analog-to-digital conversion features, including a 24-bit resolution and dual-slope conversion method.

The datasheet also outlines connectivity options, supporting various interfaces such as RS-232-C, GPIB, Ethernet (10Base2/10BaseT), and LAN MIO cards. It includes specific data on electrical performance, remote control specifications, physical dimensions, weight, and environmental operating conditions.

What's inside

  • Specifications
  • Analog-to-Digital Conversion
  • Electrical Specifications
  • Remote Control
  • Digital I/O
  • Host Communications
  • Modular Input/Output Cards
  • Physical Specifications
  • Environmental Conditions

Specifications

Memory1 MB RAM (expandable to 8 MB)
Weight4.1 kg (9 lbs)
Operating temperature range5 C to 40 C

Frequently asked questions

How many lines are available on each Digital I/O channel?

There are 16 lines per channel, consisting of 8 bidirectional and 8 input-only lines.

What is the physical width of the unit?

The device measures 325 mm wide.
