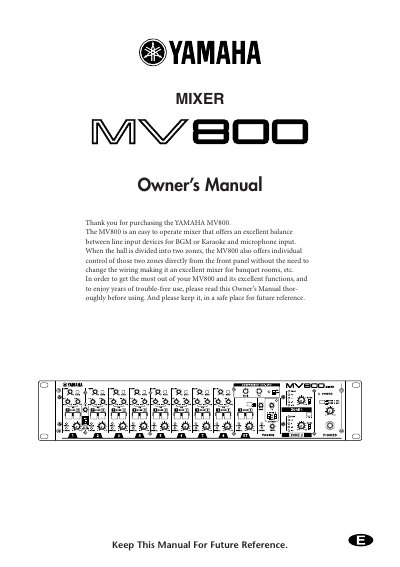

YAMAHA MV800 is an easy-to-operate mixer that offers an excellent balance between line input devices for BGM or Karaoke and microphone input. When the hall is divided into two zones, the MV800 also offers individual control of those two zones directly from the front panel without the need to change the wiring making it an excellent mixer for banquet rooms, etc.
The Yamaha MV800 is an easy-to-operate mixer designed to balance line input devices for BGM or Karaoke with microphone inputs. It features eight monaural channels equipped with noise gates, a global compressor circuit, and separate stereo outputs selectable from the front panel.
A key feature of this unit is its ability to control two zones directly from the front panel without changing wiring, making it suitable for banquet rooms and halls divided into sections. The mixer includes ZONE buses that manage monaural and stereo channels alongside REC OUT and OUTPUT jacks.
| Number of channels | 8 channels with monaural input jacks |
|---|---|
| Input types | A/B stereo line input jacks and two sets of stereo outputs |
| Equalizer range | +/-15dB control over high and low frequency ranges |
| High frequency EQ center | 10kHz (shelving) |
| Low frequency EQ center | 100Hz (shelving) |
It eliminates background noise by allowing signals to pass only when a designated level is exceeded.
It automatically reduces the volume of the stereo line input jacks when a microphone from channel 1 or 2 is used.
Pin 1 is ground, Pin 2 is hot (+), and Pin 3 is cold (-).
