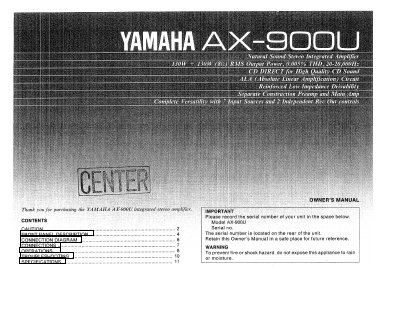

The Yamaha AX-900U is a stereo amplifier featuring a separate construction design with independent pre-amplifier and main amplifier sections. It includes two independent rear output controls for input sources and two independent rear output controls for recording outputs. The unit also provides three AC convenience outlets on the rear panel for powering other components.
The manual details the front panel controls, including power, speaker selection, input selector, tone controls (bass, treble, balance, loudness), and various filter options. It also covers connection diagrams for turntables, CD players, tuners, tape decks, and video players, along with specific instructions for connecting speakers using either wire or banana plug terminals.
| Power Consumption (Unswitched Outlet) | up to 200W |
|---|---|
| Speaker Terminal Types | Wire or Banana Plug |
Connect the output cords of the turntable to the Phono jacks and connect the ground wire to the GND terminal.
Yes, they can be used independently by connecting the Pre Out jacks to an additional power amplifier or the Main In jacks to an additional pre-amplifier.
The unswitched outlet can supply power to appliances with a total consumption of up to 200 watts.
