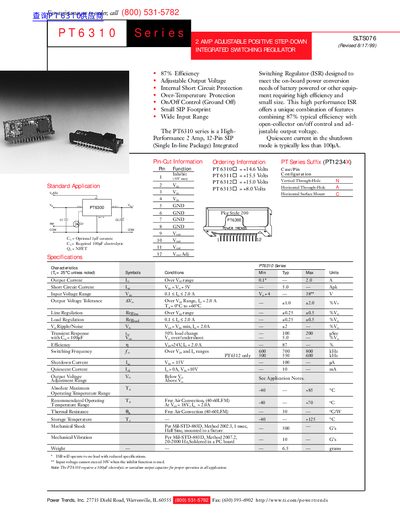

The PT6310 series is a high-performance 2 Amp, 12-pin SIP (Single In-line Package) Integrated Switching Regulator (ISR) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size. This high-performance ISR offers a unique combination of features combining 87% typical efficiency with open-collector on/off control and adjustable output voltage.
The PT6310 series is a High-Performance 2 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulator designed for battery-powered equipment requiring high efficiency and small size. It features an open-collector on/off control and adjustable output voltage with typical efficiencies of 87%.
| Operating Temperature Range | -49°C to +85°C |
|---|
The PT6310 requires a 100nF electrolytic or tantalum output capacitor.
The quiescent current in shutdown mode is typically less than 100pA.
