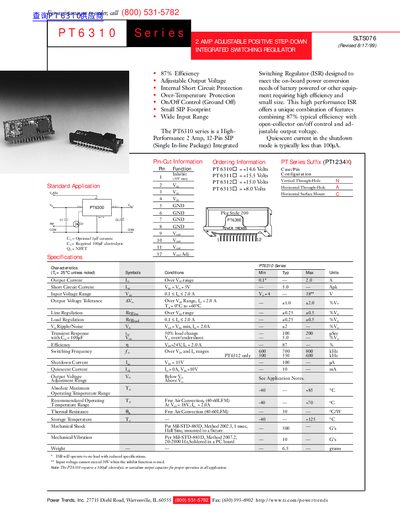

The PT6310 series is a high-performance 2A, 12-pin SIP integrated switching regulator designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size.
The PT6310 series is a High-Performance 2 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulator (ISR) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size. This high performance ISR offers a unique combination of features combining 87% typical efficiency with open-collector on/off control and adjustable output voltage.
| Efficiency | 87% |
|---|---|
| Switching Frequency | 600 to 800 kHz |
| Input Voltage Range | 4 to 38 V |
| Operating Temperature Range | -49 to +85 C |
The quiescent current in the shutdown mode is typically less than 100pA.
The PT6310 requires a 100nF electrolytic or tantalum output capacitor for proper operation in all applications.
