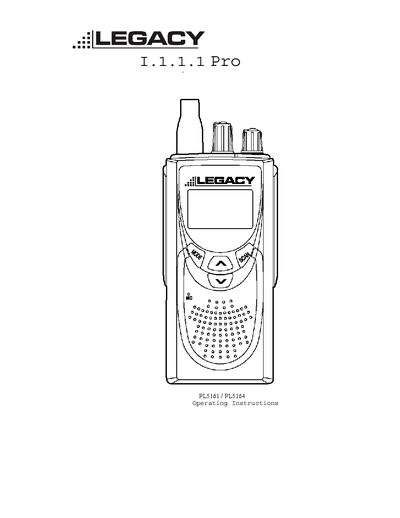

Legacy ProLine PL5161/PL5164 Operating Instructions

This document is the operating instructions for Pro i PL5161/PL5164, which introduces the features of the product, including FCC RF exposure compliance requirements, operation buttons, batteries, antennas, installation and operation.

Brand: Legacy
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 37
File format: PDF
File size: 720 KB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: 546F0327D37C2BC754A68F12791D7B64
PDF: Legacy ProLine PL5161/PL5164 Operating Instructions PDF

About this manual

This manual provides operating instructions for the Legacy ProLine PL5161 (VHF) and PL5164 (UHF) fully programmable, synthesized two-way radios. It details the features of the radios, including 16 channels, 2 or 5 Watts output power, and various scan modes. The document also covers FCC RF exposure compliance requirements for occupational use.

What's inside

About Topaz3
About Your Legacy ProLine Radios
Unpacking and Checking Equipment
Radio Control Buttons / Operation Features
Getting Started
Radio Operation
Radio Functions
Mode Operation and Function Set Up
System Option Setting
Maintenance

Specifications

Channels	16 Channels
Display	8 Character alphanumeric display
Output Power	2 Watts or 5 Watts
CTCSS Tones	38 Standard and 11 non-standard
DCS Codes	104
Battery Life (750 mAh)	8+ hours
Battery Life (1350 mAh)	10+ hours

Frequently asked questions

What is the maximum duty cycle for these radios?

Do not transmit for more than 50% of total radio use time.

How long should the standard battery pack be charged?

Charge the standard battery pack for 9 hours.

What is the recommended charging temperature range?

Ensure the ambient temperature is between 41 and 104° F (5 and 40° C).

Download PDF (720 KB)
