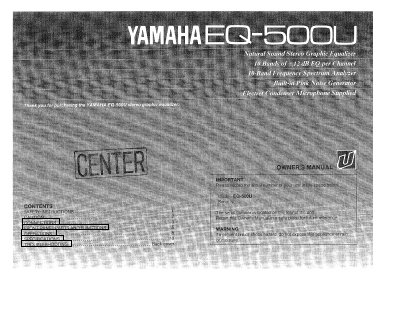

This manual provides instructions for the Yamaha EQ-500U, a sophisticated stereo graphic equalizer. It details safety precautions, proper installation locations, and how to connect the unit to various audio components such as integrated amplifiers, separate amplifiers, and tape decks. The document explains how to utilize the accessory jacks and auxiliary power outlet for optimal system integration.
| Frequency Range | 30 Hz — 16 kHz |
|---|---|
| Number of Bands | 10 bands |
| Equalization Range | ±12 dB |
| Power Consumption | 15W |
| Auxiliary Power Capacity | 400W |
The equipment must have a power consumption rating less than 400W.
The auxiliary power outlet can supply power to other components with a combined consumption of up to 400W, and the unit itself consumes 15W.
The analyzer divides a 30 Hz — 16 kHz frequency range into 10 bands and displays the relative signal level of each band.
A ±12 dB range of equalization is available on each frequency band.
