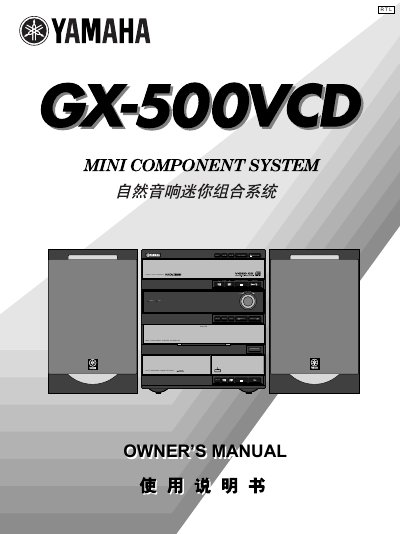

Yamaha GX-500VCD Mini Component System User Manual

This document is the owner's manual for the RTI GX-500VCD mini component system, describing the features and characteristics of the product.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 46
File format: PDF
File size: 1.4 MB
Published: 02 July, 2012
Updated: 29 September, 2023
Model: GX-5
MD5 checksum: 71C4BE2161E7DF11F6FB6E1203059E9E
PDF: Yamaha GX-500VCD Mini Component System User Manual PDF

About this manual

This document is the user manual for the Yamaha GX-500VCD Mini Component System. It guides the user through unpacking the system, setting up the main unit and speakers, and connecting external devices. The manual details the operation of the built-in amplifier, tuner, CD/Video CD player, and auto-reverse cassette deck.

What's inside

Unpacking
Setting this system
Front panel
Remote control
CD/Video CD player operation
Tuning operation
Playing back a tape
Recording
Karaoke operation
Specifications

Specifications

Tuning Range (FM)	87.5 to 108.0 MHz
Tuning Range (AM)	530/531 to 1,710/1,611 kHz
Discs Supported	Audio CD, Video CD
Speaker Type	3-Way Bass Reflex: 13 cm woofer, 5 cm tweeter, 2 cm super tweeter
Maximum Input	240 W
Impedance	6 ohm
Power Supply (General models)	AC 110/120/220/240V, 50/60 Hz
Power Consumption	10.5 kg (Main unit weight)

Frequently asked questions

What discs does the GX-500VCD support?

The system supports Audio CD and Video CD discs.

What is the FM tuning range?

The FM tuning range is from 87.5 to 108.0 MHz.

Does the system have a cassette deck?

Yes, it includes an Auto Reverse stereo Cassette Deck.
