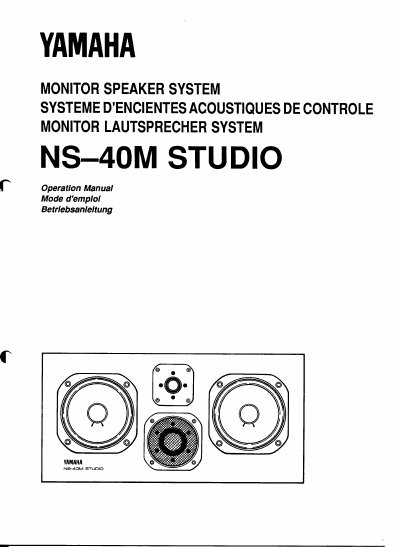

The Yamaha NS-40M STUDIO is a dual-woofer three-way configuration monitor speaker system designed for recording, A/V production, or broadcast studios. It delivers flat, precise sound from 50 Hz to 20 kHz and can handle up to 100 watts of program power.
This manual provides instructions on connecting the speakers to an amplifier with correct polarity, proper placement guidelines, and detailed technical specifications including frequency response and dimensions.
| Frequency Range | 50 Hz ~ 20 kHz |
|---|---|
| Power Capacity (Program) | 100 watts |
| Nominal Impedance | 6 ohms |
| Sensitivity | 90 dB SPL (1W, 1m) |
The system can handle up to 100 watts of program power and 200 watts maximum.
Connect the red (+) terminal on each speaker to the amplifier's positive output and the black (-) terminal to the negative output.
The NS-40M STUDIO uses a high-density particle board enclosure that is 20 millimeters thick.
