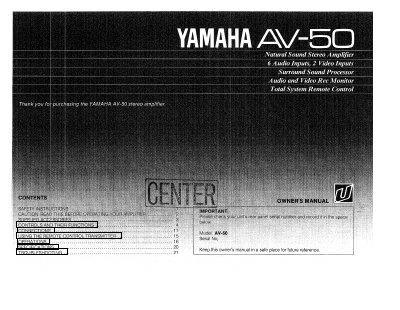

Yamaha AV-50 Stereo Amplifier Owner's Manual

Brand: Yamaha
Category: amplifier
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 2.2 MB
Published: 02 July, 2012
Updated: 02 July, 2012
Model: AV-50
MD5 checksum: D92BD11934755AE1D799D49E21EEA7E2
PDF: Yamaha AV-50 Stereo Amplifier Owner's Manual PDF

About this manual

The Yamaha AV-50 is a stereo amplifier featuring a surround sound processor, 6 audio inputs, and 2 video inputs. It supports Dolby Surround and Natural Surround modes, allowing users to enjoy enhanced audio experiences from various sources including LD, Tuner, CD, and Phono. The unit also includes a graphic equalizer with seven bands to tailor the frequency response.

What's inside

Safety Instructions
Supplied Accessories
Front Panel Controls
Rear Panel Connections
Using the Remote Control
Surround Sound Processing
Troubleshooting

Specifications

Audio Inputs	6
Video Inputs	2
Graphic Equalizer Bands	7
Equalizer Frequency Range	60 Hz to 16 kHz
Equalizer Boost/Cut Range	+12 dB

Frequently asked questions

What surround sound modes are available?

The amplifier supports Dolby Surround and Natural Surround modes.

How do I use the graphic equalizer?

Slide the controls upward to boost specific frequencies or downward to cut them.

What is the function of the VCR MONITOR switch?

It allows you to monitor the audio and video signals from a connected VCR.
