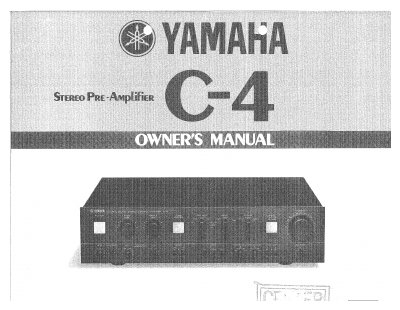

Yamaha C-4 Stereo Central Amplifier Owner's Manual

Brand: Yamaha
Category: Player
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 3.6 MB
Published: 02 July, 2012
Updated: 02 July, 2012
MD5 checksum: C62A5842E44CE3175CFA31EF7F0057AC
PDF: Yamaha C-4 Stereo Central Amplifier Owner's Manual PDF

About this manual

The Yamaha C-4 is a high-performance pre-amplifier featuring low distortion, versatile controls, and specific circuitry for MC cartridges. It includes features such as TONE BYPASS, REC OUT SELECTOR, CARTRIDGE LOAD CONTROLS, and a built-in headphone amplifier to ensure rich functional talents and excellent sound quality.

What's inside

Caution
Connection Diagram
Front Panel and Controls
Connections and How to use
Additional Functions
Specifications
Block Diagram
Schematic Diagram
Trouble Shooting

Specifications

Distortion Factor	0.01%

Frequently asked questions

What happens when the POWER switch is pushed?

The C-4 will be supplied with AC power and a lamp inside the switch will light.

Why is there no sound for several seconds after turning on the amplifier?

The muting relay functions to eliminate pop noise.
