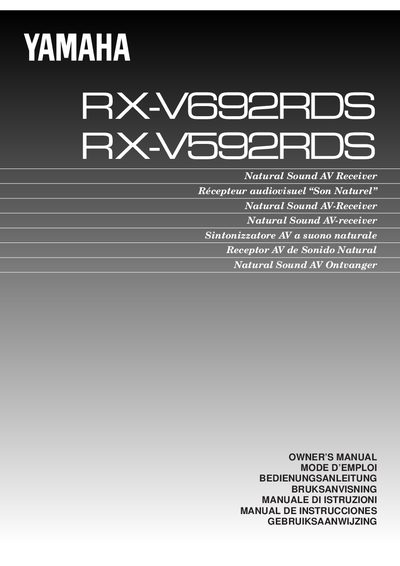

Yamaha RX-V692RDS/RX-V592RDS Owner's Manual

OWNER'S MANUAL

Brand: Yamaha
Category: home theatre
Document type: User Manual
Language: English
Pages: 55
File format: PDF
File size: 892 KB
Published: 13 June, 2012
Updated: 30 September, 2023
Models: RX-V692RDS, V592RDS
MD5 checksum: D2D5A951FDE7A9B009257FCC3BFAAFD7
PDF: Yamaha RX-V692RDS/RX-V592RDS Owner's Manual PDF

About this manual

This document is the Owner's Manual for the Yamaha RX-V692RDS and RX-V592RDS AV receivers. It details the supplied accessories, including indoor FM and AM loop antennas, remote control transmitters, and user function stickers. The manual covers safety precautions regarding installation ventilation and power handling.

What's inside

Supplied Accessories
Safety Precautions
Remote Control Transmitter
Basic Operations
Speaker Setup
Tuning Operations
Digital Sound Field Processor
Sleep Timer
Troubleshooting
Specifications

Specifications

Main Output Power (RX-V692RDS)	75W + 75W (8Q) RMS Output Power, 0.04% THD
Center Output Power (RX-V692RDS)	75W (8Q) RMS Output Power, 0.07% THD
Main Output Power (RX-V592RDS)	70W + 70W (8Q) RMS Output Power
Frequency Response	20-20,000 Hz
Remote Control Range	Approximately 6 m (19.7 feet)

Frequently asked questions

What batteries are required for the remote control?

The unit requires AA, R6, or UM-3 size batteries.

How much space is needed behind and around the unit?

You must allow at least 20 cm behind, 20 cm on both sides, and 30 cm above the top panel.

Can I change the impedance selector while the power is on?

No, changing the setting while powered may damage the unit.
