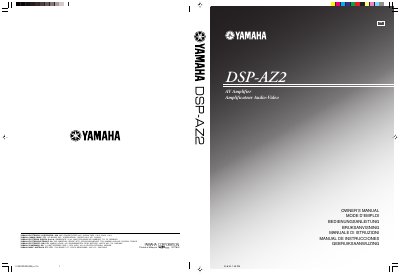

This document is the user manual of DSP-AZ2 GB AV Amplifier. It mainly introduces the installation, use, maintenance and other information of this product.
The Yamaha DSP-AZ2 is an 8-channel AV amplifier featuring built-in power amplification with a minimum RMS output of 130W per main channel. It supports multi-mode digital sound field processing, including Dolby Pro Logic II, Dolby Digital, DTS, and proprietary CINEMA DSP technologies. The unit includes a 96-kHz/24-bit D/A converter and various video signal conversion capabilities.
| Minimum RMS Output Power (0.02% THD, 20 Hz — 20 kHz, 8Ω) | Main: 130 W + 130 W, Center: 130 W, Rear: 130 W + 130 W, Rear center: 130 W |
|---|---|
| Minimum RMS Output Power (0.05% THD, 1 kHz, 8Ω) | Front effect: 25W+25 W |
| D/A Converter | 96-kHz/24-bit |
| Battery Type | LR6 x 3 |
The unit must be used with the voltage specified on it, which is 110/120/220/240 V AC, 50/60 Hz.
Three LR6 batteries are required for the remote control.
