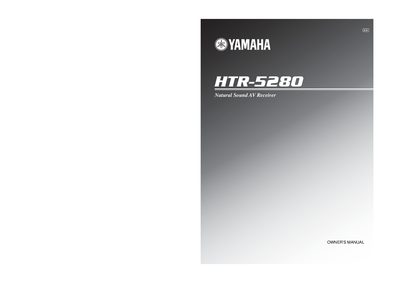

YAMAHA HTR-5280 Manual

About this manual

This document is the Owner's Manual for the Yamaha HIR-5280O Natural Sound AV Receiver. It begins with critical safety instructions regarding electrical shock, fire hazards, and proper ventilation requirements to ensure safe operation.

The manual covers essential setup procedures, including the correct use of the voltage selector and frequency step switch for different regions. It also details operational precautions, such as avoiding sudden temperature changes and ensuring proper placement away from heat sources or moisture.

What's inside

• SAFETY INSTRUCTIONS
• FCC INFORMATION
• CAUTION: READ THIS BEFORE OPERATING YOUR UNIT
• VOLTAGE SELECTOR
• FREQUENCY STEP switch
• TROUBLESHOOTING

Frequently asked questions

What clearance space is required around the unit for proper ventilation?

You must leave at least 30 cm on the top, 20 cm on the right and left, and 10 cm at the back of the unit.

What voltage and frequency options are available for the voltage selector?

The unit supports voltages of 110/120/220/240 V AC at 50/60 Hz.

How should the FREQUENCY STEP switch be set for North, Central, and South America?

The switch should be set to 100 kHz/16 kHz for these regions.
