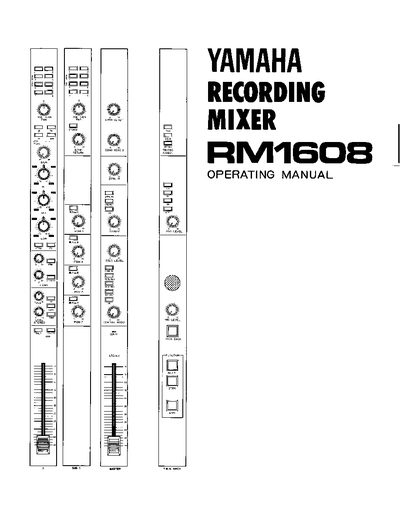

This manual provides operating instructions for the Yamaha RM1608 recording mixer, designed for use with 8 or 16-channel multitrack tape recorders and outboard sound enhancement equipment. It details the control panel operations, including input modules, talk back, master, and sub modules, as well as the VU meter and patch bay functions.
| Total Harmonic Distortion | Less than 0.1% at +4dB output, 20Hz to 20kHz |
|---|---|
| Dimensions | 953 mm x 279.6 mm x 769 mm |
| Weight | 41 kg |
| Power Supply | 120V, 60Hz (U.S. & Canadian Models) |
It attenuates the input by 20dB from the set levels if the input level is too high to be reduced by the gain control.
The LED comes on 3dB before the clipping level to warn that inputs are approaching the clipping level.
