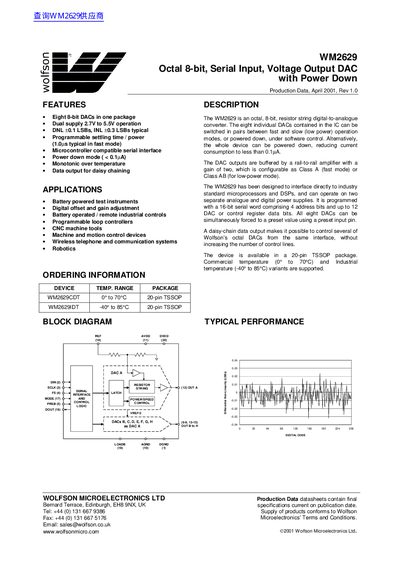

The WM2629 is an octal, 8-bit, resistor string digital-to-analogue converter with power down capability.
The Wolfson WM2629 is an octal, 8-bit, resistor string digital-to-analogue converter designed for microcontroller and DSP interfaces. It features eight individual DACs in a single 20-pin TSSOP package, capable of dual supply operation between 2.7V and 5.5V. The device supports programmable settling time and power-down modes to reduce current consumption to less than 0.1µA.
| Resolution | 8 bits |
|---|---|
| Package | 20-pin TSSOP |
| Power Down Current | < 0.1µA |
The commercial temperature range is 0°C to 70°C.
The industrial temperature range is -40°C to 85°C.
The device contains eight 8-bit DACs in one package.
