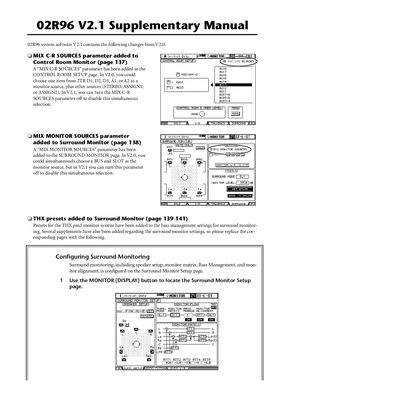

Yamaha 02R96 V2.1 Supplementary Manual

This supplementary manual describes the new features in 02R96 system software V2.1. These features include the MIX C-R SOURCES parameter, the MIX MONITOR SOURCES parameter, and THX presets.

Brand: 02R96
Document type: User Manual
Language: English
Pages: 4
File format: PDF
File size: 71 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: 02R96
MD5 checksum: 17B02C47B84BA64E2FFD2BEAE0261262
PDF: Yamaha 02R96 V2.1 Supplementary Manual PDF

About this manual

This document serves as a supplementary guide for the Yamaha 02R96 mixing console running system software version 2.1. It outlines specific changes from version 2.0, including the addition of MIX C-R SOURCES and MIX MONITOR SOURCES parameters to disable simultaneous source selection in Control Room and Surround Monitor setups.

What's inside

MIX C-R SOURCES parameter
MIX MONITOR SOURCES parameter
THX presets added
Configuring Surround Monitoring
SPEAKER SETUP
SURR. MODE
MONITOR MATRIX
BASS MANAGEMENT
Monitor Alignment

Specifications

Software Version	V2.1
Manufacturer	Yamaha Corporation

Frequently asked questions

Can I change parameters when using the THXD or THXF presets?

No, if you select preset THXD or THXF, you cannot change the parameters.

What are the available options for the Oscillator parameter in Speaker Setup?

You can choose from PINK NOISE, 500-2K (pink noise through a 500 Hz to 2 kHz BPF), 1K (1 kHz sinewave), or 50 Hz (50 Hz sinewave).

What is the range for setting Monitor Alignment Attenuator parameters?

The Attenuator parameters can be set from -12 dB to +12 dB in 0.1 dB steps.

What is the range for setting Monitor Alignment Delay parameters?

The Delay parameters can be set from 0 to 30 msec in 0.02 msec steps.
