SMBJ series surface mount transient voltage suppressors have excellent clamping capability and fast response time, and can be used for various circuit transient protection applications. The maximum working temperature is 150℃.

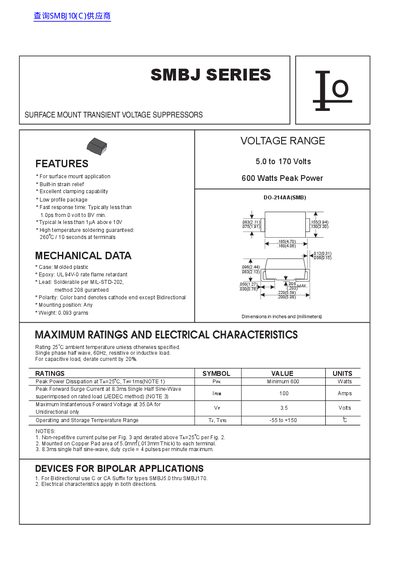

This document provides technical specifications and electrical characteristics for the SMBJ Series Surface Mount Transient Voltage Suppressors. Key features include a built-in strain relief, excellent clamping capability, and a fast response time of less than 1.0ps from 0 volt to BV min.
The datasheet details mechanical data such as the molded plastic case with UL 94V-0 flame retardant epoxy and solderable leads per MIL-STD-202. It also includes comprehensive rating tables for various breakdown voltages ranging from 5.0V to 170V, along with derating curves for peak pulse power based on ambient temperature.
| Peak Power Dissipation at Ta=25°C, TP=1ms | 600 Watts |
|---|---|
| Peak Forward Surge Current (8.3ms) | 100 Amps |
| Operating and Storage Temperature Range | -55 to +150 C |
| Package Type | DO-214AA(SMB) |
The device supports a minimum of 600 Watts peak power.
It has a response time typically less than 1.0ps from 0 volt to BV min.
The unit operates and stores between -55°C and +150°C.
