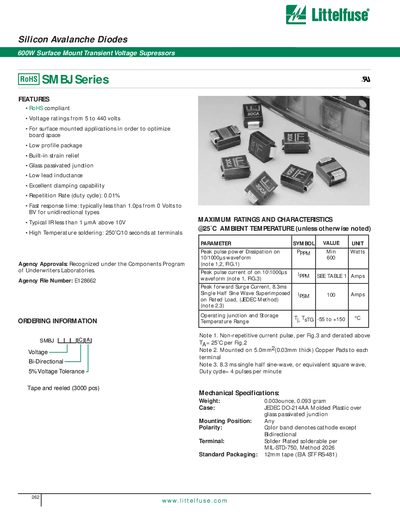

The product is Littlefuse's SMBJ series 600W surface mount transient voltage suppressors, which have RoHS compliance, voltage range from 5 to 440 volts, low inductance and other features.
The SMBJ Series 600W surface‑mount transient voltage suppressors are designed for high‑speed protection with fast response times (typically less than 1.0 ps) and low lead inductance. Features include RoHS compliance, low profile packages, built‑in strain relief, and excellent clamping capability.
Maximum ratings include a peak pulse power of 600 W, operating temperature range from –55 °C to +150 °C, and voltage ratings from 5 V to 440 V. The devices are supplied in JEDEC DO‑214AA molded‑plastic packages, with dimensions of 2.16 mm × 2.74 mm and a weight of 0.003 oz (0.093 g). Ordering information and detailed electrical specifications are provided for each part number in the series.
| Maximum power rating | 600 W |
|---|---|
| Package weight | 0.003 oz (0.093 g) |
| Voltage rating range | 5 V to 440 V |
| Response time | < 1.0 ps |
Yes, the SMBJ Series devices are RoHS compliant.
The typical response time is less than 1.0 ps.
They use a JEDEC DO‑214AA molded‑plastic package.
