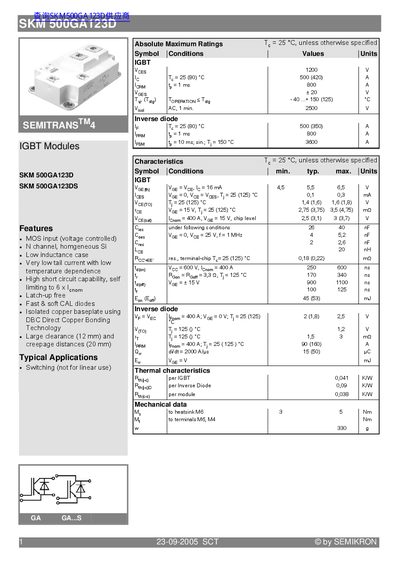

This document is the datasheet of SKM500GA123D, which introduces its characteristics, features and parameters
This document provides technical specifications for the Semikron SKM 500GA123D IGBT module. It includes absolute maximum ratings such as a collector-emitter voltage of 1200 V and a rated current of 500 A at 25 °C.
The datasheet details electrical characteristics including gate-emitter threshold voltage, on-state voltage drop, and switching energies. It also presents typical application curves for output characteristics, turn-on/off energy versus temperature, and transient thermal impedance.
| Collector-Emitter Voltage (Vces) | 1200 V |
|---|---|
| Rated Current at Tj=25°C (Ic) | 500 A |
| Operating Temperature Range | -40 ...+150 °C |
The maximum collector-emitter voltage (Vces) is rated at 1200 V.
The module supports a maximum continuous current (Ic) of 500 A at Tj = 25 °C.
The module can operate between -40 and +150 °C.
