This is a technical specification document about SEMITRANS® 2. It introduces its functions and characteristics.

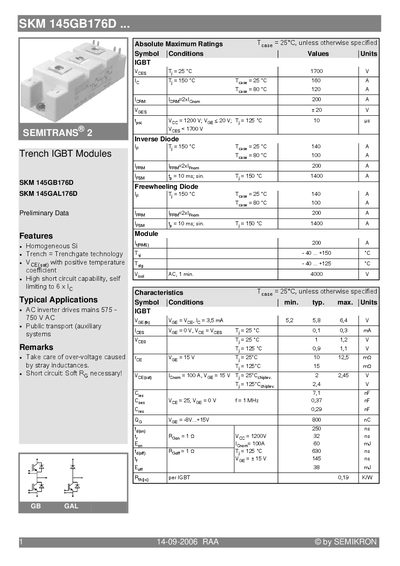

This datasheet provides the electrical ratings, thermal limits and switching characteristics of the Semikron SKM 145GB176D trench‑gate IGBT module. It includes absolute maximum ratings, typical forward voltage, switching energies and thermal impedance curves.
The document also lists typical application fields such as AC inverter drives and auxiliary systems for public transport, and gives design notes on over‑voltage protection and short‑circuit handling.
