This product is a 12 watt single output DC/DC converter with a very wide input voltage range. The converter consists of a high-speed chopper circuit using state-of-the-art MOSFET technology, isolation transformer, and high regulation linear post regulator. These provide very low noise and ultra stable output voltages.

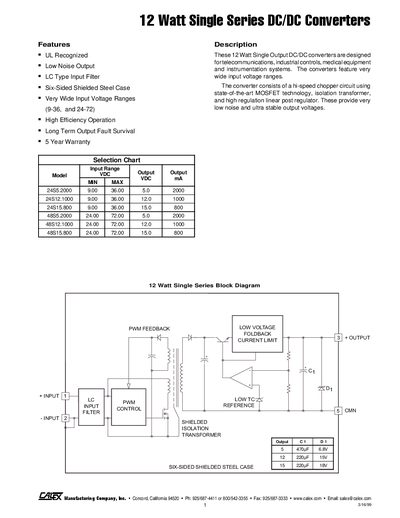

This document is a datasheet for the Calex 12 Watt Single Series DC/DC converters. These units are designed for telecommunications, industrial controls, medical equipment, and instrumentation systems. Key features include a six-sided shielded steel case, very wide input voltage ranges (9-36V and 24-72V), and high efficiency operation using hi-speed chopper circuit technology.
| Power Rating | 12 Watt |
|---|---|
| Efficiency | Typical 70% |
| Switching Frequency | Typical 909 kHz |
| Short Circuit Protection | Continuous, 8 Hours Minimum |
| Warranty | 5 Year |
| Isolation Voltage | 500 VDC MIN |
The typical efficiency is 70%.
Yes, it has short circuit protection rated for continuous operation with a minimum of 8 hours.
The units come with a 5-year warranty.
