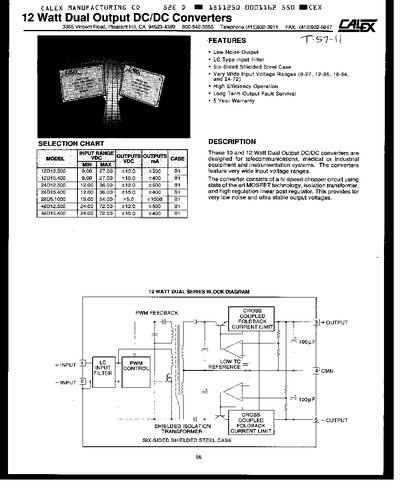

The Calex 12 Watt Dual Output DC/DC Converters are designed for telecommunications, medical, and industrial equipment. They feature low‑noise output, LC‑type input filtering, a six‑sided shielded steel case, and a five‑year warranty.
The converters support very wide input voltage ranges (9‑27 V, 12‑36 V, 18‑54 V, and 24‑72 V) and deliver output voltages of +5 V, +12 V, or +15 V with high efficiency (typical 70 %). Electrical specifications include switching frequencies of 85‑100 kHz, noise of 10 mV p‑p (max 40 mV p‑p), and isolation voltage of 48 V. Mechanical data list a case operating temperature range of –25 °C to 80 °C and a unit weight of 65 oz.
| Input voltage range | 9‑27 V, 12‑36 V, 18‑54 V, 24‑72 V |
|---|---|
| Typical efficiency | 70 % |
| Switching frequency (typical) | 85‑100 kHz |
| Output voltage options | +5 V, +12 V, +15 V |
| Noise (0‑20 MHz bandwidth) | 10 mV p‑p (max 40 mV p‑p) |
| Warranty | 5 Year |
The converters accept very wide input ranges: 9‑27 V, 12‑36 V, 18‑54 V, and 24‑72 V.
Typical efficiency is about 70 % at full load.
Available output voltages are +5 V, +12 V, and +15 V.
Calex provides a five‑year warranty for the converters.
