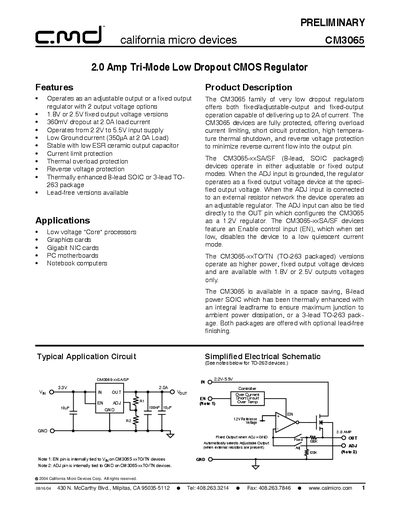

The CM3065 is a low dropout regulator with options for adjustable or fixed output. It features low dropout voltage, low ground current, current limit protection, and thermal overload protection.
The CM3065 family of very low dropout regulators offers both fixed/adjustable-output and fixed-output operation capable of delivering up to 2A of current. The devices are fully protected, offering overload current limiting, short circuit protection, high temperature thermal shutdown, and reverse voltage protection to minimize reverse current flow into the output pin.
The CM3065 is available in a space saving, 8-lead power SOIC which has been thermally enhanced with an integral leadframe to ensure maximum junction to ambient power dissipation, or a 3-lead TO-263 package. Both packages are offered with optional lead-free finishing.
| Load Current | 2.0A |
|---|---|
| Input Voltage Range | 2.2V to 5.5V |
| Dropout Voltage | 360mV |
| Ground Current | 50uA |
| Operating Temperature Range | -40 to +85 °C |
| Package Types | 8-lead SOIC, 3-lead TO-263 |
The device offers 1.8V or 2.5V fixed output voltage versions, or can be configured as an adjustable regulator.
Yes, the regulator is stable with low ESR ceramic output capacitors.
The device includes current limit protection, thermal overload protection, and reverse voltage protection.
